Apro Oracle Guide - Documentation

About APRO

APRO has chosen SOON as their first SVM (Solana Virtual Machine) chain to support oracle services, marking a significant milestone in expanding their cross-chain oracle capabilities.

Overview

APRO is building a secure platform by combining off-chain processing with on-chain verification, extending both data access and computational capabilities. This forms the foundation of APRO Data Service, improving data accuracy and efficiency while offering the flexibility to create custom solutions tailored to the specific needs of DApp businesses.

APRO Data Service supports two data models—Data Push and Data Pull—that deliver real-time Price Feeds and other essential data services, ensuring comprehensive support for all DApp business scenarios. Currently, they support 161 Price Feed services across 15 major blockchain networks.

Data Service Models

Data Push: Uses a “Push-Based” data model where decentralized independent node operators continuously gather and push data updates to the blockchain when certain price thresholds or time intervals are met. This improves blockchain scalability and provides timely updates.

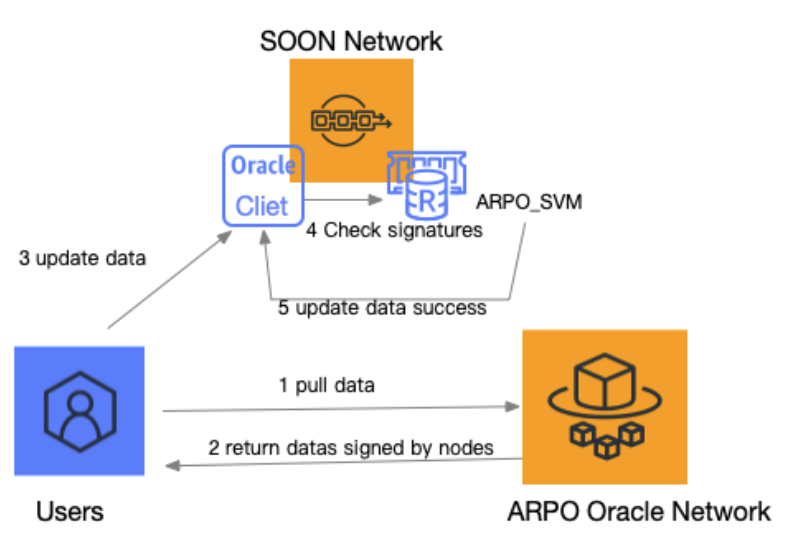

Data Pull: Uses a “Pull-Based” data model to deliver real-time Price Feed services to dApps. Designed for on-demand access, high-frequency updates, low latency, and cost-effective integration, making it ideal for DeFi protocols and decentralized exchanges.

Key Benefits

Combined Off-Chain & On-Chain Architecture
- Integrates off-chain computing with on-chain verification
- Extends computing capabilities while ensuring system security
Customizable Computing Logic
- DApp businesses can implement custom computing logic
- Secure business logic processing without compromising security
Enhanced Security Features
- Hybrid node approach combining on-chain and off-chain resources
- Multi-network communication scheme to prevent single-point failures
- TVWAP price discovery mechanism for fair and accurate data

Integration Guide

Program IDs

These are the program IDs for APRO Oracle integration:

Description	Devnet	Testnet
Apro_SVM_Oracle	`4Mvy4RKRyJMf4PHavvGUuTj9agoddUZ9atQoFma1tyMY`	Coming soon
Sample_Client	`HUJ8ouH6fVonhF1hPV6ENoLid5nbHfyZSpvfujw6X6Hm`	Coming soon

Feed IDs

The following feed IDs are available on the apro testnet:

Name	Feed ID
BTC/USD	`0x0003665949c883f9e0f6f002eac32e00bd59dfe6c34e92a91c37d6a8322d6489`
ETH/USD	`0x0003555ace6b39aae1b894097d0a9fc17f504c62fea598fa206cc6f5088e6e45`
SOL/USD	`0x000343ec7f6691d6bf679978bab5c093fa45ee74c0baac6cc75649dc59cc21d3`
USDT/USD	`0x00039a0c0be4e43cacda1599ac414205651f4a62b614b6be9e5318a182c33eb0`
USDC/USD	`0x00034b881a0c0fff844177f881a313ff894bfc6093d33b5514e34d7faa41b7ef`

Authentication

Headers

All routes require the following two headers for user authentication:

Header	Description
Authorization	The user’s unique identifier, provided as a UUID (Universally Unique IDentifier).
X-Authorization-Timestamp	The current timestamp, with precision up to milliseconds. The timestamp must closely synchronize with the server time, allowing a maximum discrepancy of 5 seconds (by default).

API endpoints

Return a single report at a given timestamp

Endpoint: /api/soon/reports

Type	Description	Parameter(s)
HTTP GET	Returns a single report for a given timestamp.	• feedID: A Data Streams feed ID • timestamp: The Unix timestamp for the report

Sample request:

GET /api/soon/reports?feedID=<feedID>&timestamp=<timestamp>

Sample response:

{
  "report": {
    "configDigest": "00067f925361b2ab26a59cc1997a5c064b3eeb4c9c39262caaf616b42d1ad132",
    "epochAndRound": 41831448,
    "extraHash": "0000000000000000000000000000000000000000000000000000000000000000",
    "feedID": "0x0003665949c883f9e0f6f002eac32e00bd59dfe6c34e92a91c37d6a8322d6489",
    "validFromTimestamp": 1734670442,
    "observationsTimestamp": 1734670442,
    "nativeFee": "3592730136000",
    "tokenFee": "350000000000000000",
    "expireAt": 1734756842,
    "benchmarkPrice": "97418950700000000000000",
    "askPrice": "97420347300000000000000",
    "bidPrice": "97418471600000000000000",
    "signatures": [
      "7a13e631c86604b0a86ed4c0ab8b9333b8e1aa2a562130575410e8e4896eea5d7e51ea881c40aecc8111665170b5c5b1c7657fc0140abb59d0fc17a9bd71f2a6",
      "86dd69e9ca6f9a72ff523df29cbc47f88ffded4c75f762abf301477cb4b4b1892053121d0727732547b31d04816679320520a81e0d34488726f7ccf5a3f6e9b9"
    ],
    "recovery_ids": [1, 1]
  }
}

Return a single report with the latest timestamp

Endpoint: /api/soon/reports/latest

Type	Parameter(s)
HTTP GET	feedID: A Data Streams feed ID

Sample request:

GET /api/soon/reports/latest?feedID=<feedID>

Return a report for multiple FeedIDs at a given timestamp

Endpoint: /api/soon/reports/bulk

Type	Description	Parameter(s)
HTTP GET	Return a report for multiple FeedIDs at a given timestamp.	• feedIDs: A comma-separated list of Data Streams feed IDs • timestamp: The Unix timestamp for the reports • startTimestamp: The Unix timestamp for the first report

Sample request:

GET /api/soon/reports/bulk?feedIDs=<FeedID1>,<FeedID2>,...&timestamp=<timestamp>
GET /api/soon/reports/bulk?feedIDs=<FeedID1>,<FeedID2>,...&startTimestamp=<startTimestamp>

Return multiple sequential reports for a single FeedID

Endpoint: /api/soon/reports/page

Type	Description	Parameter(s)
HTTP GET	Return multiple sequential reports for a single FeedID, starting at a given timestamp.	• feedID: A Data Streams feed ID • startTimestamp: The Unix timestamp for the first report • limit (optional): The number of reports to return

Sample request:

GET /api/soon/reports/page?feedID=<FeedID>&startTimestamp=<StartTimestamp>&limit=<Limit>

WebSocket Connection

Establish a streaming WebSocket connection that sends reports for the given feedID(s) after they are verified.

Endpoint: /api/soon/ws

Type	Parameter(s)
WebSocket	feedIDs: A comma-separated list of Data Streams feed IDs

Sample request:

GET /api/soon/ws?feedIDs=<feedID1>,<feedID2>,...

Error Response Codes

Status Code	Description
400 Bad Request	This error is triggered when: • There is any missing/malformed query argument • Required headers are missing or provided with incorrect values
401 Unauthorized	This error is triggered when: • Authentication fails due to invalid HMAC signature • User requests access to an unauthorized feed
500 Internal Server	Indicates an unexpected server condition preventing request fulfillment
206 Partial Content	Indicates partial data availability (bulk endpoint only). Example: When requesting data for `feedID1`, `feedID2`, and `feedID3`, if `feedID2` data is unavailable, returns `[feedID1 data, feedID3 data]` with 206 status
